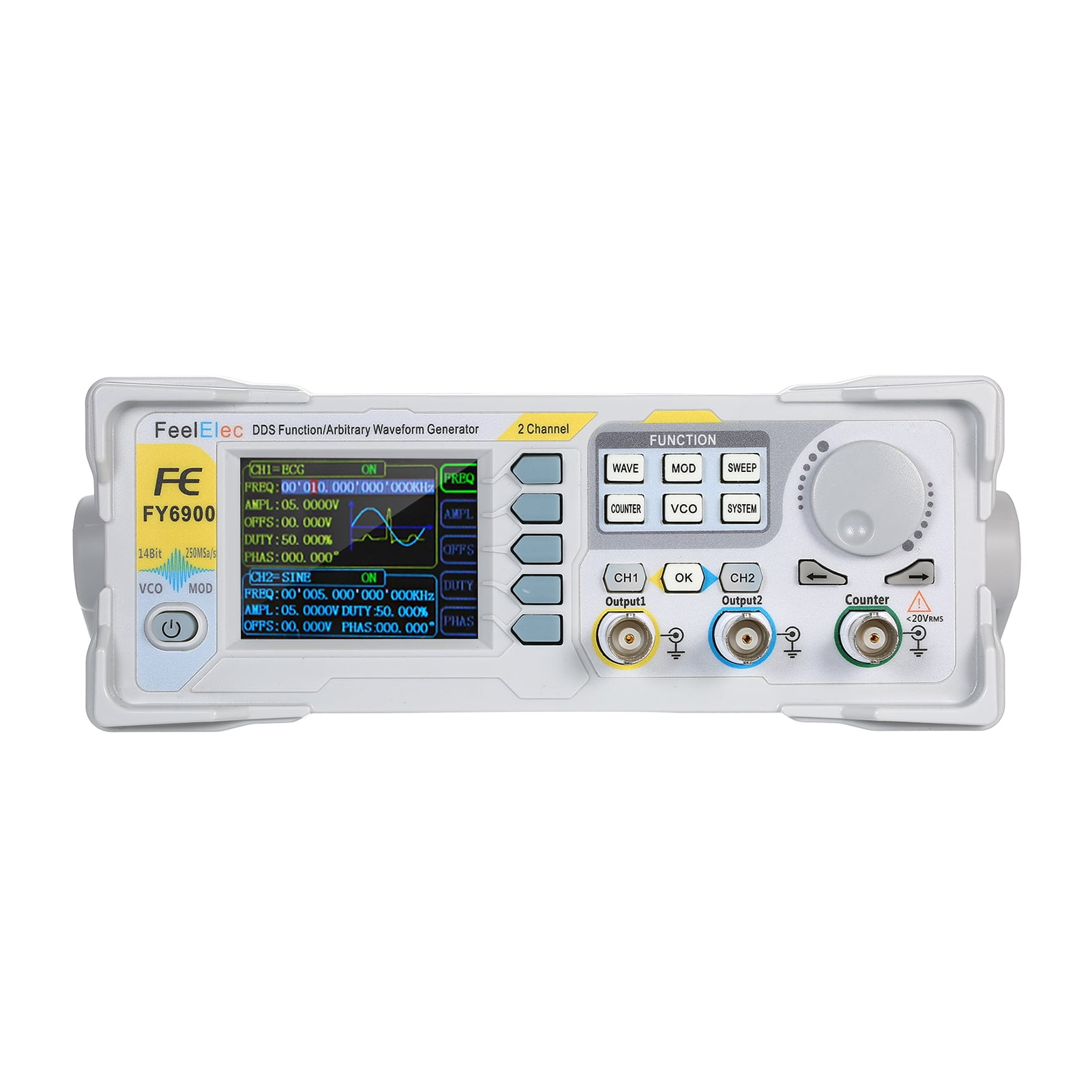

Shinysix Signal Generator,250MSa/s Meter VCO Source 250MSa/s Meter DDS DDS Dual-channel 20MHz Meter VCO Burst Function Source 250MSa/s DDS Dual-channel Function Dual-channel Function Source DDS DDS

20MHz High Precision DDS Generator Digital DDS Dual-channel Signal Generator Function Signal/Arbitrary Waveform Generator Pulse Signal Source 250MSa/s Frequency Meter VCO Burst AM/PM/FM/ASK/FSK/PSK Modulation Function Signal Generator: AM, , PM, ASK, FSK and PSK modulations.The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.support waveform copy and state copy between channels.all channels can work more than 60 seconds when the load is short-circuited.Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.Adopt MagicPulse Technology, Low Jitter(RMS)&lt;200ps.Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S～999.99S sweep time; Up, Down and roundtrip sweep directions.Precisely adjust the phases of the two channels. Precision can be 0.01°.Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user .-12V～+12V DC Offset function. Resolution 0.001V.all functions can be controlled by PC program and the communication protocol is open for secondary development.2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.it can save 20 sets user-set parameters and can be loaded at any time.Standard dual full functional channels which are equivalent to two independent generators.Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.Min amplitude resolution can be to 1mV. Amplitude range is 1mV～24Vpp.Adopt ABS shell with table type design. Use 100-240V (AC) wide range voltage power supply.Sine, (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0～12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1～1048575 pulse trains.<br><br>Specification:<br>Modulation Type: AM, , PM, ASK, FSK, PSK<br>Waveform Length: 8192 points * 14bits<br>Output Amplitude Range: 1mV～24Vpp(20M,60M), 1mV～25Vpp(100M)<br>Vertical Resolution: 14 bits<br>Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75in<br>Minimum Pulse Width: 20ns<br>Plug &amp; Model: EU Plug FY6900-20M / EU Plug FY6900-60M / EU Plug FY6900-100M / US Plug FY6900-20M / US Plug FY6900-60M / US Plug FY6900-100M / AU Plug FY6900-60M (Optional)<br>Sampling Rate: 250MSa/s(20M,60M), 300MSa/s(100M)<br>Sine: 0~20MHz(20M), 0~60MHz(60M), 0~100MHz(100M)<br>Display: 2.4 inch (320*240), TFT color display<br>Power: AC100V~240V<br>Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H)<br>Package Weight: 1065g / 37.51oz<br>Item Weight: 611g / 21.56oz<br>Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64<br>Material: ABS<br><br>Package List:<br>1 * Power Cable<br>1 * USB Data Cable<br>1 * BNC-BNC Cable<br>2 * BNC-Clip Cable<br>1 * DDS Signal Generator<br>

• Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.
• Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1～1048575 pulse trains.
• Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)
• Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
• Adopt MagicPulse Technology, Low Jitter(RMS)<200ps.
