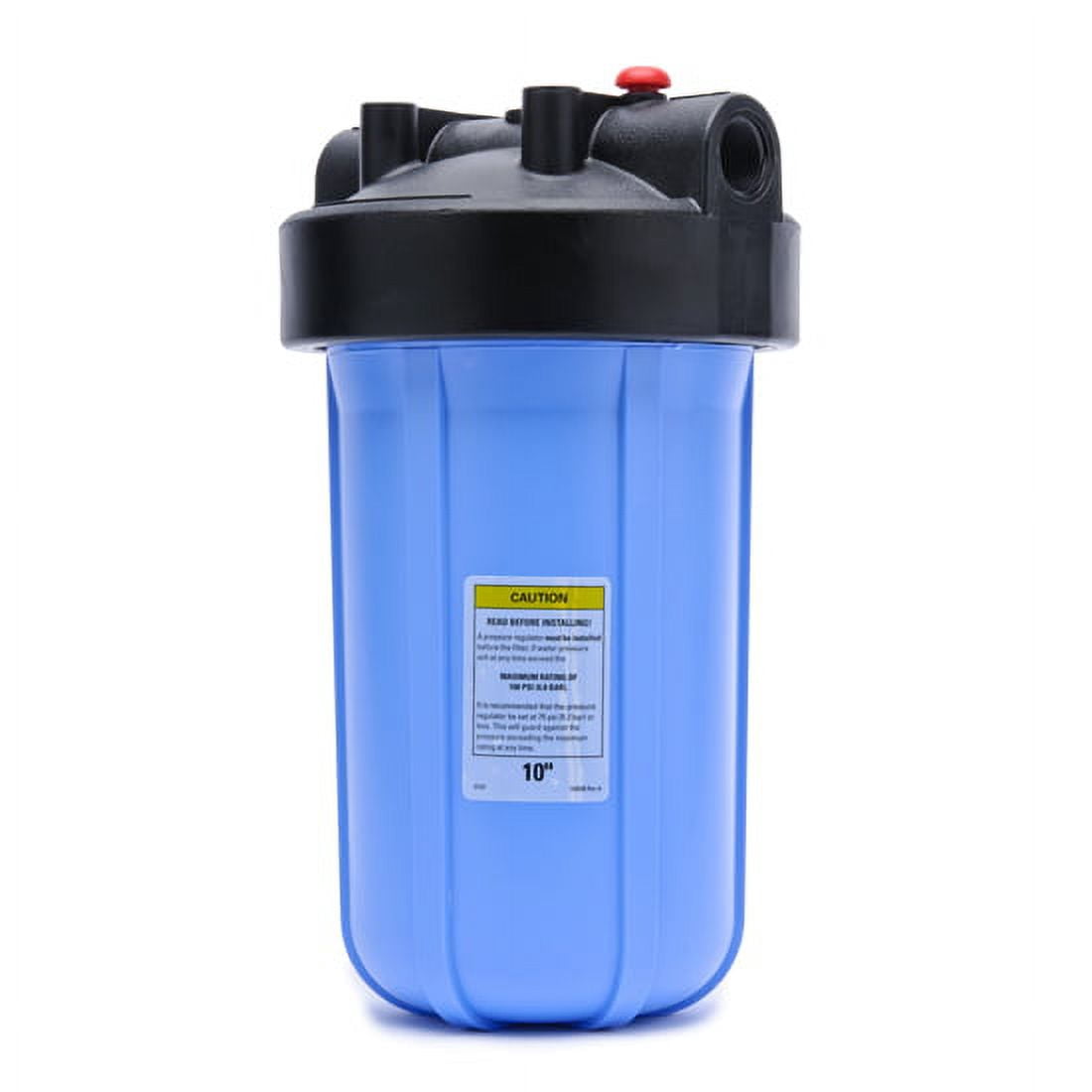

150469 / HFPP-34-PR-10 Pentek Big Blue Whole House 10 inch Filter Housing

Durable construction. If installed before appliances, the number 10 Big Blue housings extend the life of washing machines, water heaters, and other household appliances by reducing sediment before it reaches the appliances when a sediment filter is used. Ideal for homes, farms, private wells, restaurants, swimming pools, spas, and trickle irrigation. Four times the capacity lifespan of standard 10-inch whole house water filters. The number 10 heavy-duty Big Blue whole house water filter has high-flow and heavy-sediment capabilities. The number 10 Big Blue housing's pressure release button on the cap allows for release of the whole house water filter pressure in order to more easily unscrew the sump from the cap. Leaking and clogging is prevented by the dynamically sealing, self-cleaning o-ring. Two number 10 Big Blue housings can be connected with a pipe nipple or pipe union. The union will allow for adjustment of the fitting in the event of leakage. Use the NP-34 pipe nipple to connect two number 10 Housings with 3/4-inch inlet/outlets.

• Large unit housing for high-flow and heavy sediment applications
• Reinforced polypropylene sump for strength and chemical resistance
• Initial pressure drop at 15 gpm 2 psi
• Maximum temperature 100 degrees F (37.8 degrees C)
• Maximum pressure 100 psi
• Materials and structural integrity certification NSF/ANSI standard 42
• Product Type: Whole House
• Filter Component: Replacement Filter

• Use with a 10" x 4.5" filter cartridge (sold separately)
• Overall Height - Top to Bottom: 13.13"
• Overall Width - Side to Side: 7.25"
• Overall Depth - Front to Back: 7.25"
• Overall Product Weight: 4.49 lbs
